| Type |

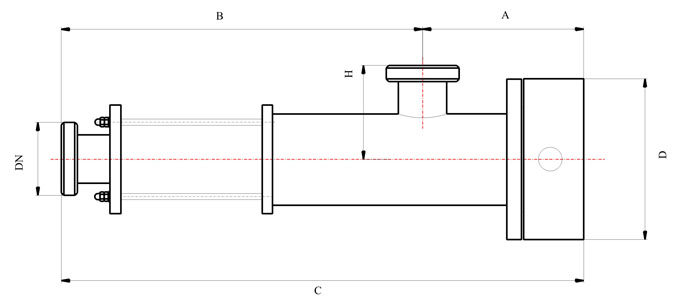

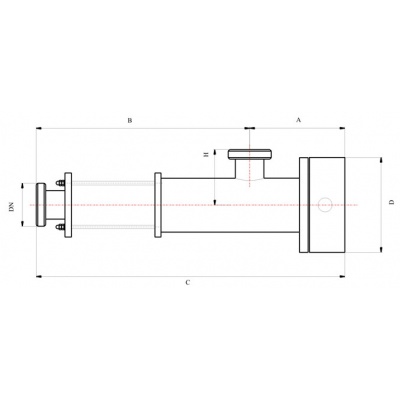

Installation dimensions |
| A |
B |
C |
D |
H |
DN |
| P - 04 |
75 |
160 |
235 |
100 |
75 |
25 |
| P - 10 |
75 |
160 |
235 |
100 |
75 |
25 |
| P - 20 |
105 |
320 |
425 |
120 |
75 |
25 |
| P - 40 |
105 |
320 |
425 |
120 |
75 |
40 |
| P - 80 |
160 |
375 |
535 |
160 |
75 |
40 |
| P - 160 |
220 |
465 |
685 |
160 |
90 |
50 |
| P - 280 |
220 |
535 |
755 |
160 |
90 |
65 |
Remark: knuckle thread according to DN DIN 11851

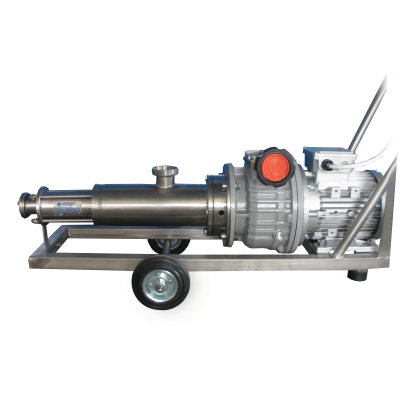

Technical details: P-80
| Type |
Qmax/liter/minute |
Pmax/bar/ |
nmax/rot/minute |
| P-80 |
80 |
6 |
1400 |
